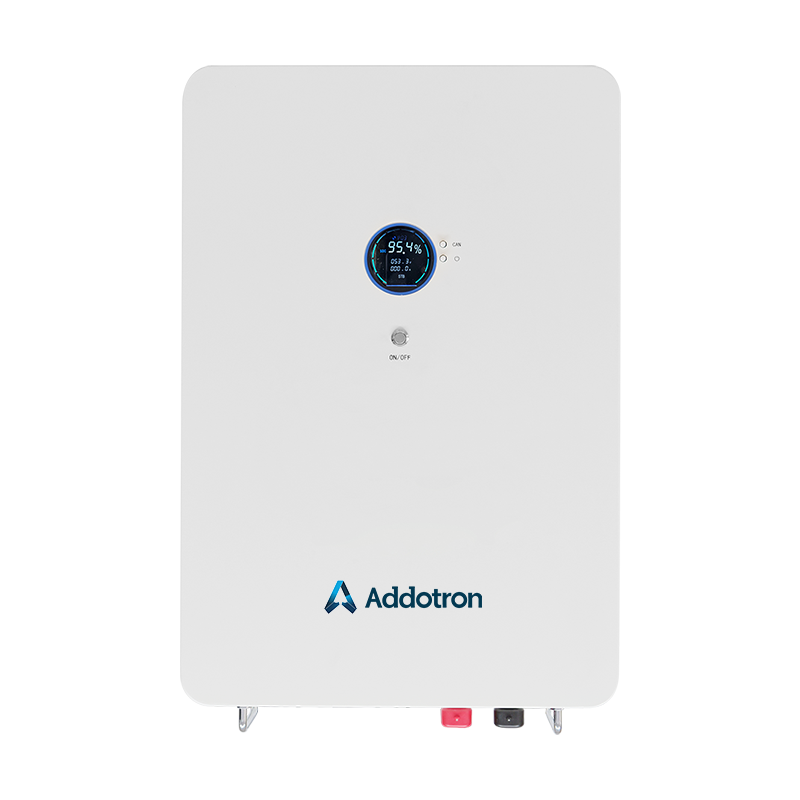

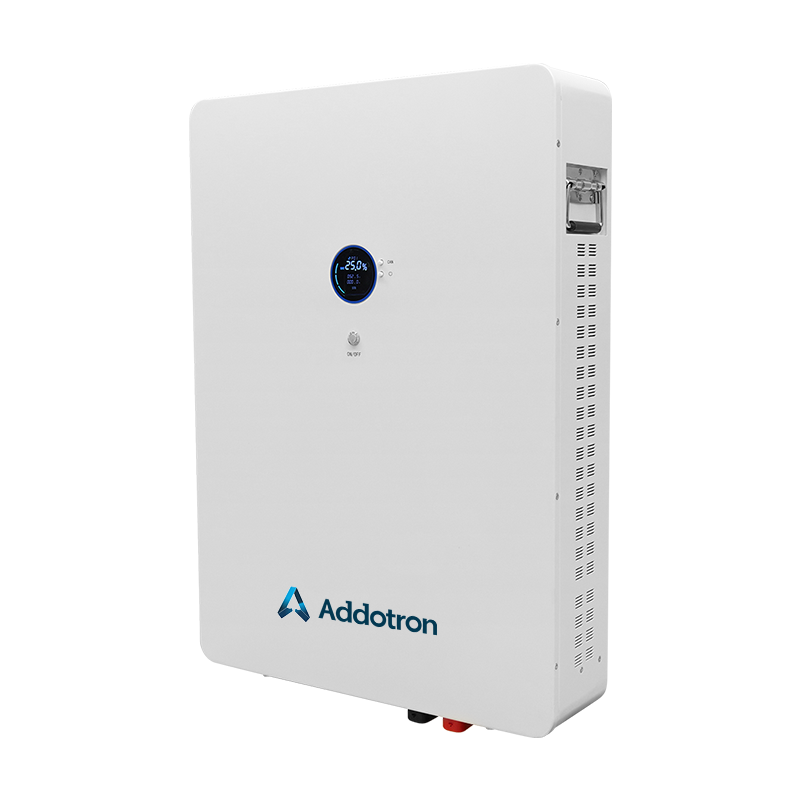

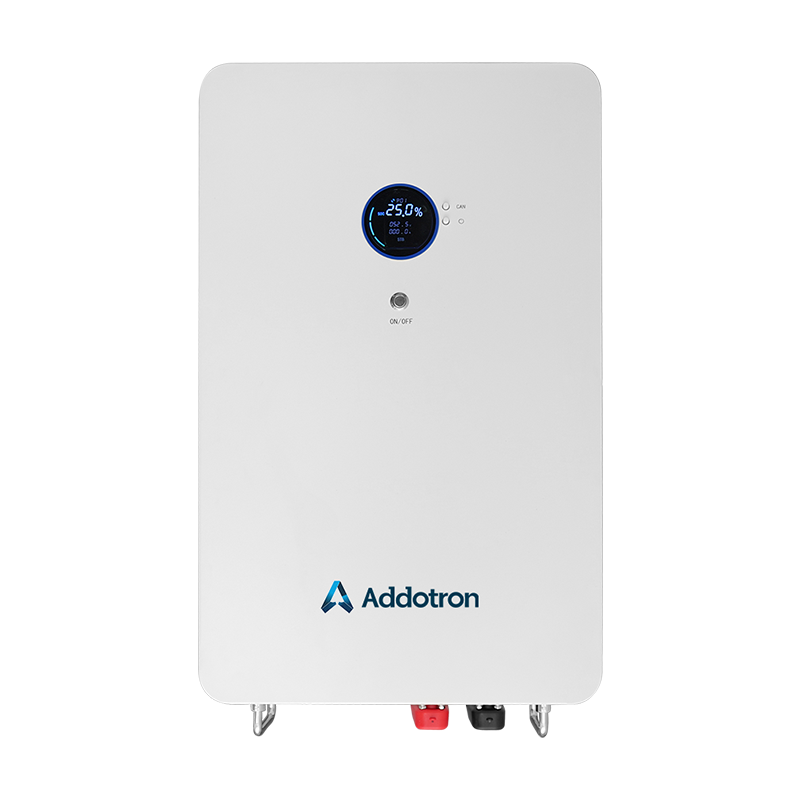

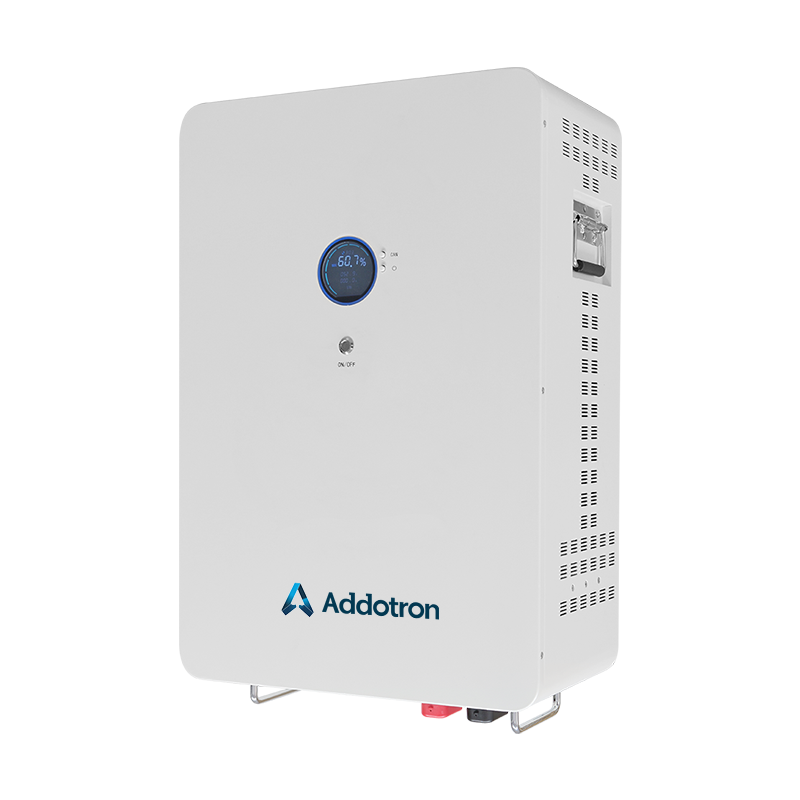

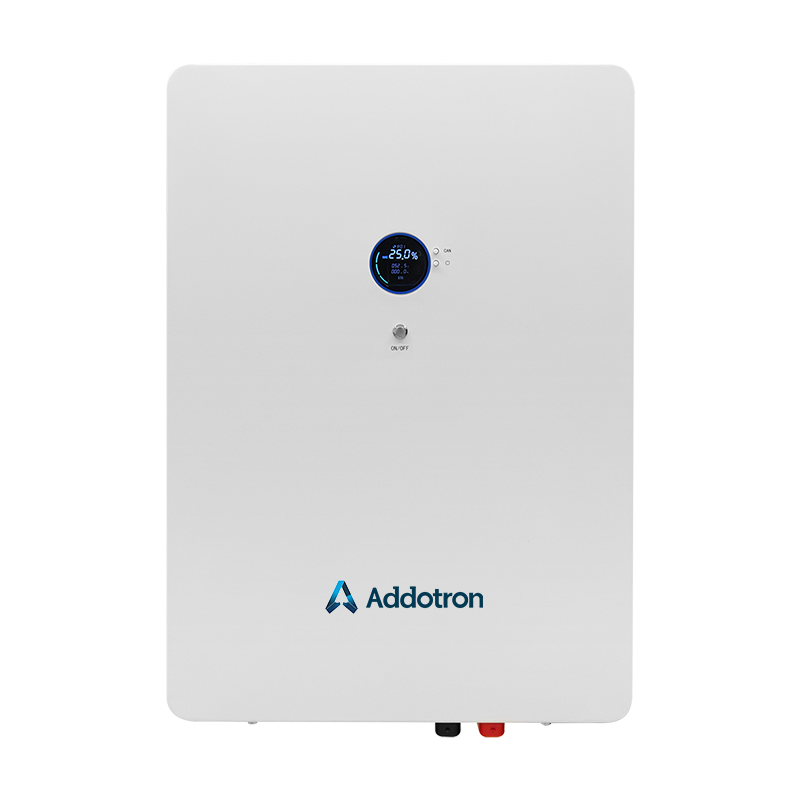

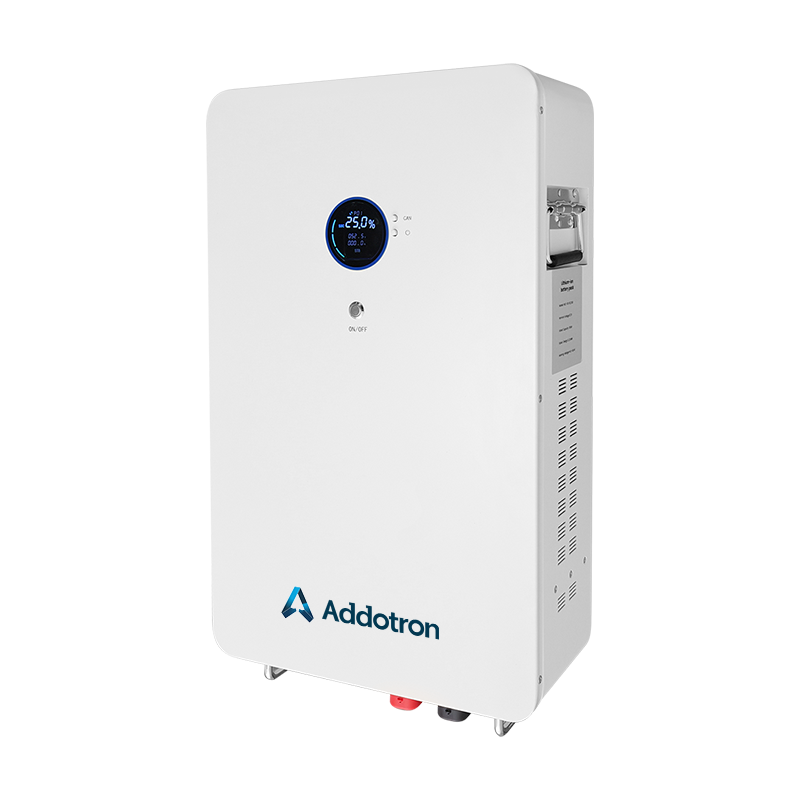

Wall-mounted
ADDOTRON
1. Reduce Maintenance Costs with 6000+ Cycle Longevity Addotron utilizes premium LiFePO4 cells that deliver over 6000 deep cycles (at 90% DOD). For B2B distributors, this industrial-grade longevity ensures a service life of approximately 15 years. By providing this Safe LiFePO4 Energy Storage, you help your clients avoid the high cost of battery replacements and frequent maintenance visits, which directly protects your long-term profit margins and builds a foundation of brand reliability in the residential market.
2. Optimize Inventory with 20-Unit Parallel Scalability The LB series supports the parallel connection of up to 20 units, allowing for massive total capacity expansion. This "modular" approach enables your business to serve a wide range of clients—from small apartments to large villas—using a single SKU. This versatility helps you avoid the risk of carrying slow-moving, specialized stock for different project sizes, significantly improving your inventory turnover and reducing warehousing overhead.
3. Ensure Project Success with Universal Inverter Compatibility Equipped with a massive protocol library, Addotron batteries match almost all mainstream inverter brands via CAN and RS485. This ensures a "plug-and-play" installation for your technical teams. By offering this Scalable Energy Storage, you help your clients avoid costly technical failures and compatibility disputes on-site, streamlining the commissioning process and ensuring that every solar project you supply is reliable from day one.
4. Enhance Brand Reputation through Multi-Layered Protection Safety is paramount in residential environments. Addotron employs a multi-layered hardware and software protection strategy, including real-time monitoring of over-voltage, temperature, and short-circuits. This Reliable Home Energy Storage system isolates faults instantly to prevent thermal risks. Prioritizing this safety level helps your business avoid potential liability claims and protects your brand from the reputational damage associated with battery safety incidents.
| Parameters | Technical Specifications | ||
| Product Model | ADDOTRON-LB100 | ADDOTRON-LB200 | ADDOTRON-LB200-B |
| Nominal Voltage (V) | 51.2 V | 51.2 V | 51.2 V |
| Cell Specification (Ah) | 100 Ah | 100 Ah | 100 Ah |
| Nominal Capacity (Ah) | 100 Ah | 200 Ah | 200 Ah |
| Nominal Energy (kWh) | 5.12 kWh | 10.24 kWh | 10.24 kWh |
| Voltage Range (V) | 44.8 V – 58.4 V | 44.8 V – 58.4 V | 44.8 V – 58.4 V |
| Cycle Life | ≥ 6000 Cycles | ≥ 6000 Cycles | ≥ 6000 Cycles |
| Dimensions (WDH) mm | 380 * 148 * 615 mm | 430 * 240 * 630 mm | 550 * 148 * 780 mm |
| Net Weight (kg) | 46 kg | 85 kg | 83 kg |
| Communication | CAN/RS485/BT/Wi-Fi | CAN/RS485/BT/Wi-Fi | CAN/RS485/BT/Wi-Fi |
| Parallel Connection | Up to 20 Units | Up to 20 Units | Up to 20 Units |
| Max Altitude (m) | < 3000 m | < 3000 m | < 3000 m |
| Protection Rating | IP20 | IP20 | IP20 |
| Cooling Method | Natural Cooling | Natural Cooling | Natural Cooling |
| Application Environment | Indoor | Indoor | Indoor |
| BMS Protection | Over/Under Voltage, Over/Under Temp, Short Circuit, Communication Fail, Cell Imbalance | Over/Under Voltage, Over/Under Temp, Short Circuit, Communication Fail, Cell Imbalance | Over/Under Voltage, Over/Under Temp, Short Circuit, Communication Fail, Cell Imbalance |
| Certifications | UN38.3, MSDS, CE | UN38.3, MSDS, CE | UN38.3, MSDS, CE |
Install the module on a load-bearing wall using the provided high-strength brackets.
Connect the DC power cables to a compatible hybrid inverter and establish a communication link via the CAN or RS485 ports.
Use the integrated LCD screen to select the appropriate inverter protocol from the library.
Once configured, the system manages energy flow automatically based on the inverter's settings.
Q: How does the 6000-cycle life impact the resale value?
A: High cycle life ensures the battery remains functional for over 15 years. This durability minimizes after-sales service requests and replacement claims, allowing your business to offer longer warranties and build customer trust.
Q: Is professional installation mandatory for this system?
A: Yes, as a Fixed Energy Storage Battery, it requires professional electrical connection to an inverter and proper wall mounting. This helps you avoid the liability risks of DIY-related errors and ensures a safe, code-compliant installation for your clients.
Q: Can I monitor the system remotely?
A: Absolutely. The system supports Bluetooth and WIFI monitoring, allowing you or the end-user to check battery status via an app. This feature helps avoid unnecessary site visits for simple diagnostic checks.
